1Nm Battery Motor - Image 1
Click to enlarge

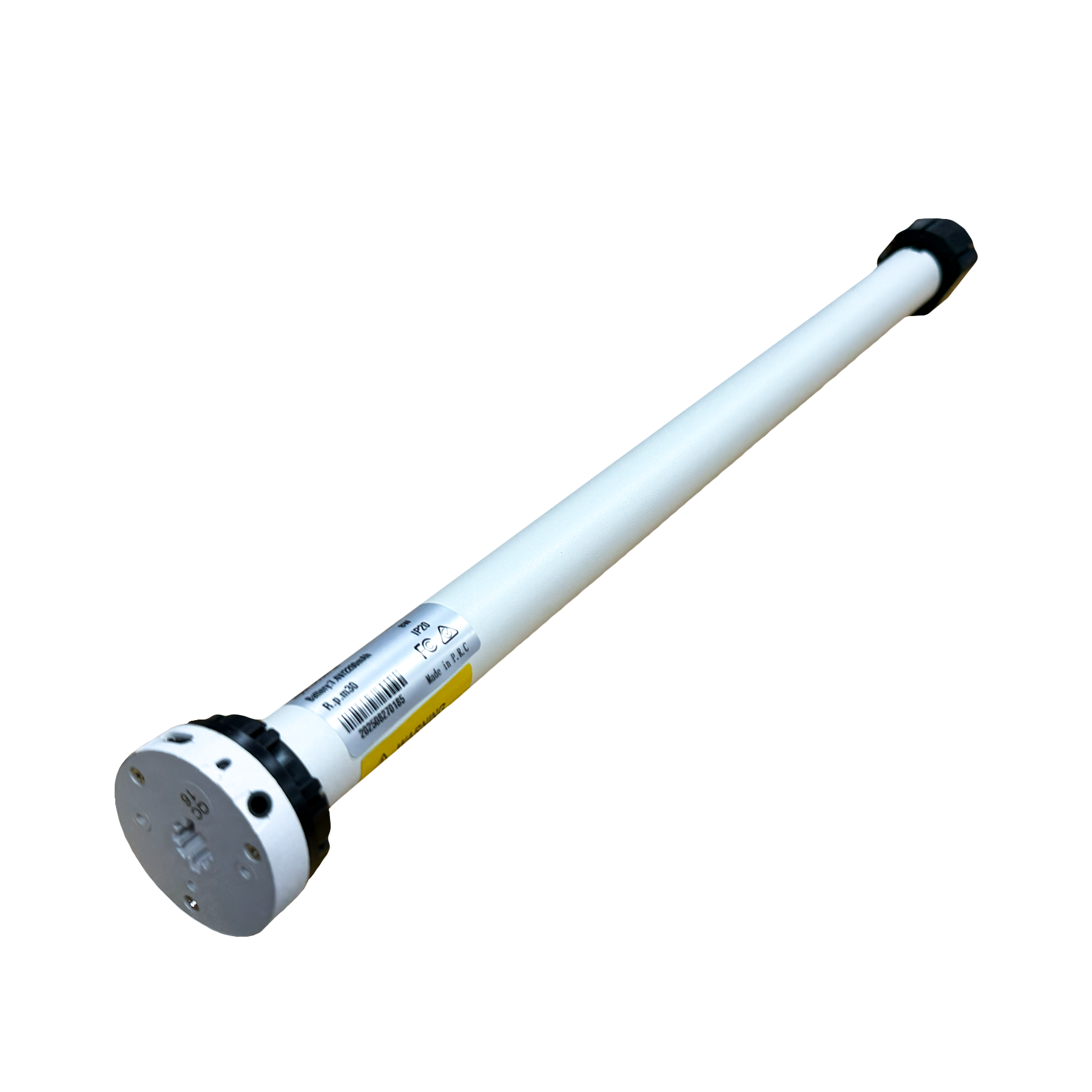

1Nm Battery Motor

The 1 Nm Battery Motor (WSERD30-B 1/30C) is a compact and highly efficient solution designed to power internal blinds up to 2m wide by 2m high. This upgraded model features a modern USB-C charging port and utilizes patented coreless technology to deliver whisper-quiet operation.

With its antenna-free sleek design, it provides a clean, professional look that is perfect for wire-free DIY installations. The motor offers adjustable speeds, a soft stop function, and a 3rd intermediate limit position for precise light control. Fully compatible with the NEO app and Luxaflex Merger motors, this system combines high performance with effortless convenience.

Key Features & Maintenance:

  • Sleek & Antenna-Free: Features an internal receiver with no external aerials for a clean, minimalist aesthetic.

  • Whisper-Quiet Drive: Engineered with patented coreless technology for exceptionally smooth and silent movement.

  • Custom Control: Set a preferred 3rd intermediate limit position between the fully open and closed states.

  • Smart App Integration: Control your blinds from anywhere using the NEO app or pair with compatible Alpha remotes.

Safety & Charging Guidelines:

  • Charging Maintenance: To keep the battery in top condition, please charge the motor every 3 months. Disconnect immediately once the green light indicates a full charge to prevent overcharging.

  • Heat Protection: Ensure the motor is not exposed to prolonged high temperatures or direct sunlight, which could lead to overheating.

  • Safety Action: If you detect any unusual warmth, odors, or discoloration, disconnect the motor from its power source immediately.

  • Temperature Range: Safe storage temperature is between -20°C and 65°C.

With its antenna-free sleek design, it provides a clean, professional look that is perfect for wire-free DIY installations. The motor offers adjustable speeds, a soft stop function, and a 3rd intermediate limit position for precise light control. Fully compatible with the NEO app and Luxaflex Merger motors, this system combines high performance with effortless convenience.

$90.00 per pack (1 units)

1 in stock

Additional information

Technical Specifications
Torque 1 Nm
Output Speed 30 RPM (Adjustable)
Nominal Voltage 7.4 V
Charger Required 5V USB-C (ALDC 5V-C)
Running Time Infinity
Protection Level IP20
Total Length 460 mm
Net Weight 0.48 kg
Battery Type Built-in Rechargeable Lithium
Limit Switch Electronic (with 3rd Position)
Control Type Built-in Receiver / NEO App
