1Nm Battery Motor
$90.00 per pack (1 units)
2Nm Battery Vertical Motor
$250.00 per pack (1 units)

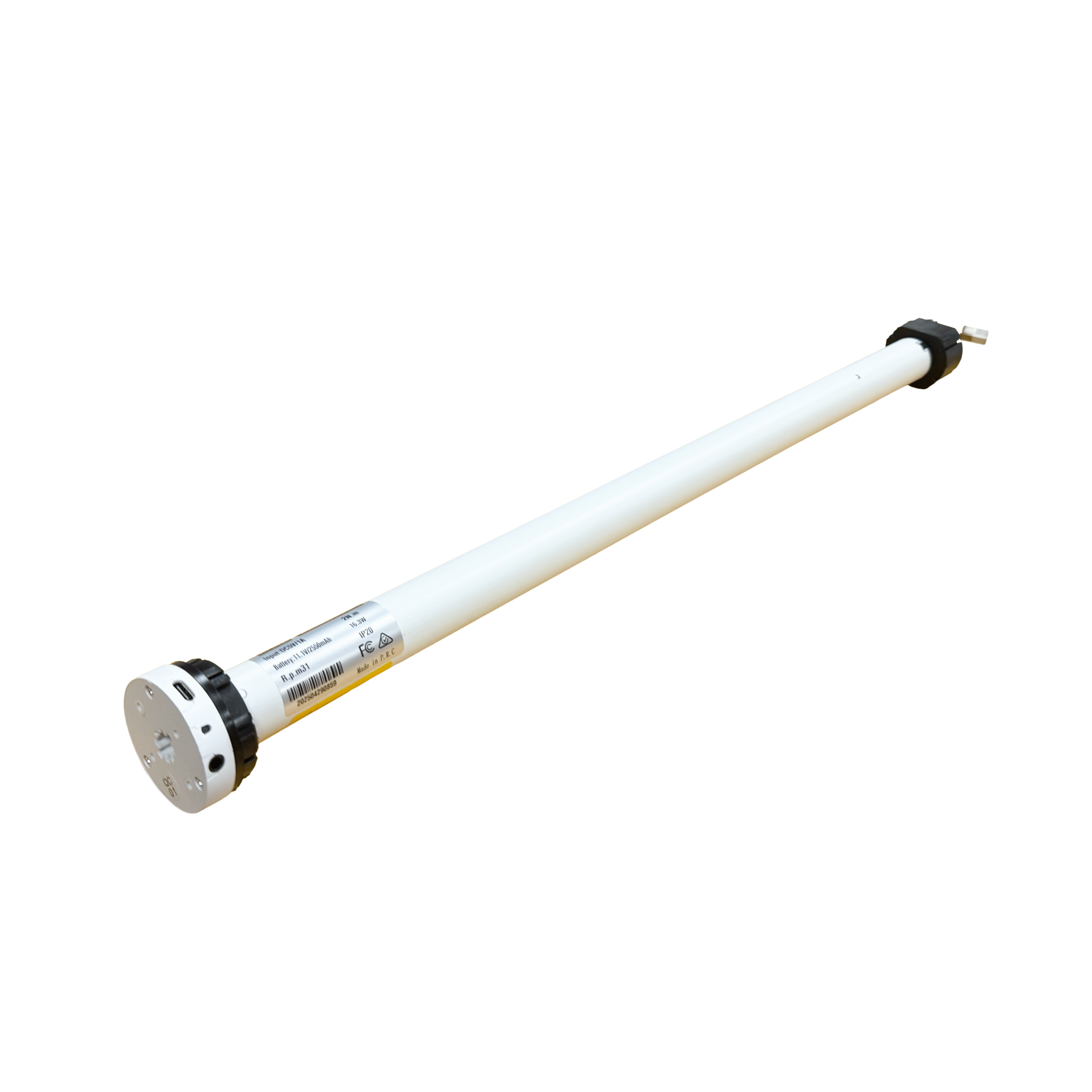

2Nm Battery Motor
The 2 Nm Battery Motor (WSERD30B 2/31) is a ground-breaking solution featuring an advanced coreless DC drive that is significantly more efficient and quieter than traditional battery motors. Powered by an internal rechargeable lithium battery, it provides approximately 12 months of use (based on 750 cycles) on a single charge. This motor is highly versatile, fitting tube sizes from 30mm to 50mm, and can lift blinds up to 10ft x 10ft. With intelligent internal charging management, it prevents overcharging and eliminates the need for unsightly external cables by plugging the ALDC charger directly into the motor head.
$105.00 per pack (1 units)
1 in stock
Wholesale Access Required
Please login or register to purchase this product.
Please login or register to purchase this product.
Additional information
Technical Specifications
| Torque | 2 Nm |
| Speed | 31 RPM |
| Power | 16.3 W |
| Nominal Voltage | 11.1 V |
| Nominal Current | 1.3 A |
| Protection Level | IP20 |
| Length | 20.6 inches (approx. 523 mm) |
| Max Lifting Capacity | 9.8 x 9.8 ft (3m x 3m) |
| Net Weight | 1.2 lb (0.54 kg) |
| Limit Switch | Electronic |
| Battery Type | Internal Rechargeable Lithium |
| Tube Compatibility | 30 mm – 50 mm |
